UV Light Meter UVA/UVB/UVC
Professional UVA, UVB & UVC Light Meter provides accurate and reliable UV light measurement with comprehensive data...
- $648.00
$0.00- $648.00
- Unit price
- per
Subtotal:
$648.00
Couldn't load pickup availability
Fast Shipping
Product packaged and shipped in 24HRS.
Free Returns
Learn More.
Description
xProfessional UVA, UVB & UVC Light Meter provides accurate and reliable UV light measurement with comprehensive data logging capabilities.

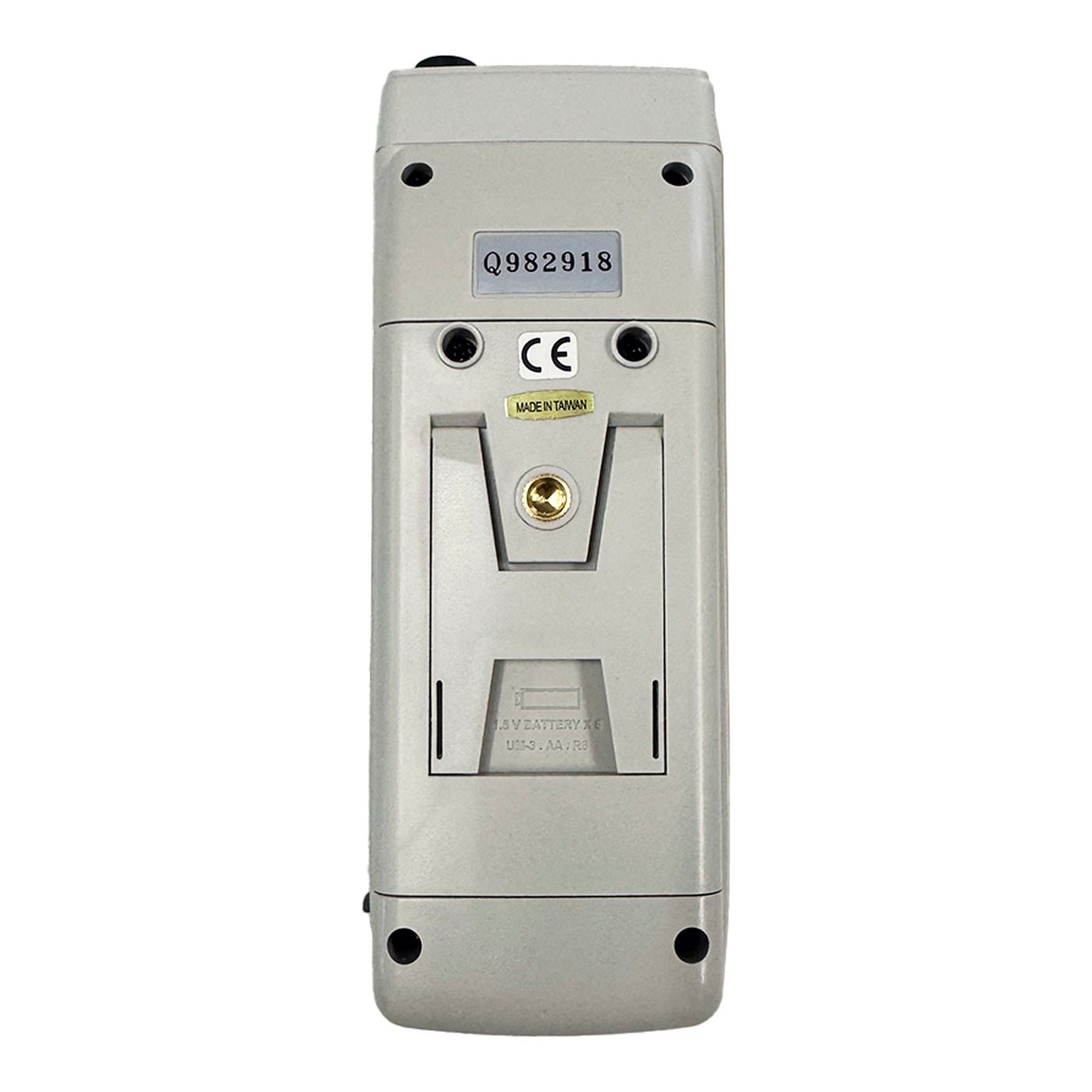

This instrument features a tripod mount, and we recommend using a tripod for the most stable and accurate readings.
The UV Light Meter UVA/UVB/UVC delivers precise measurement of UVA and UVC irradiance, ensuring accurate monitoring in industrial, environmental, and laboratory settings. Its integrated Type K/J thermocouple thermometer extends functionality, enabling temperature readings alongside UV measurements. This combination supports comprehensive data logging and reliable results for professional use.
-
Real-Time Data Logger
Saves measuring data along with time information (year, month, date, hour, minute, second) into the SD memory card, enabling easy download to Excel for further data analysis without extra software. -
Professional UVA/UVB & UVC Measurement
Measures both UVA/UVB within the 260 nm to 390 nm range, and UVC within the 200 to 280 nm irradiance with high accuracy and reliability. -
Dual Measurement Ranges
Offers two measurement ranges of 2 mW/cm² and 20 mW/cm², providing flexibility for different applications. -
User-Friendly Design

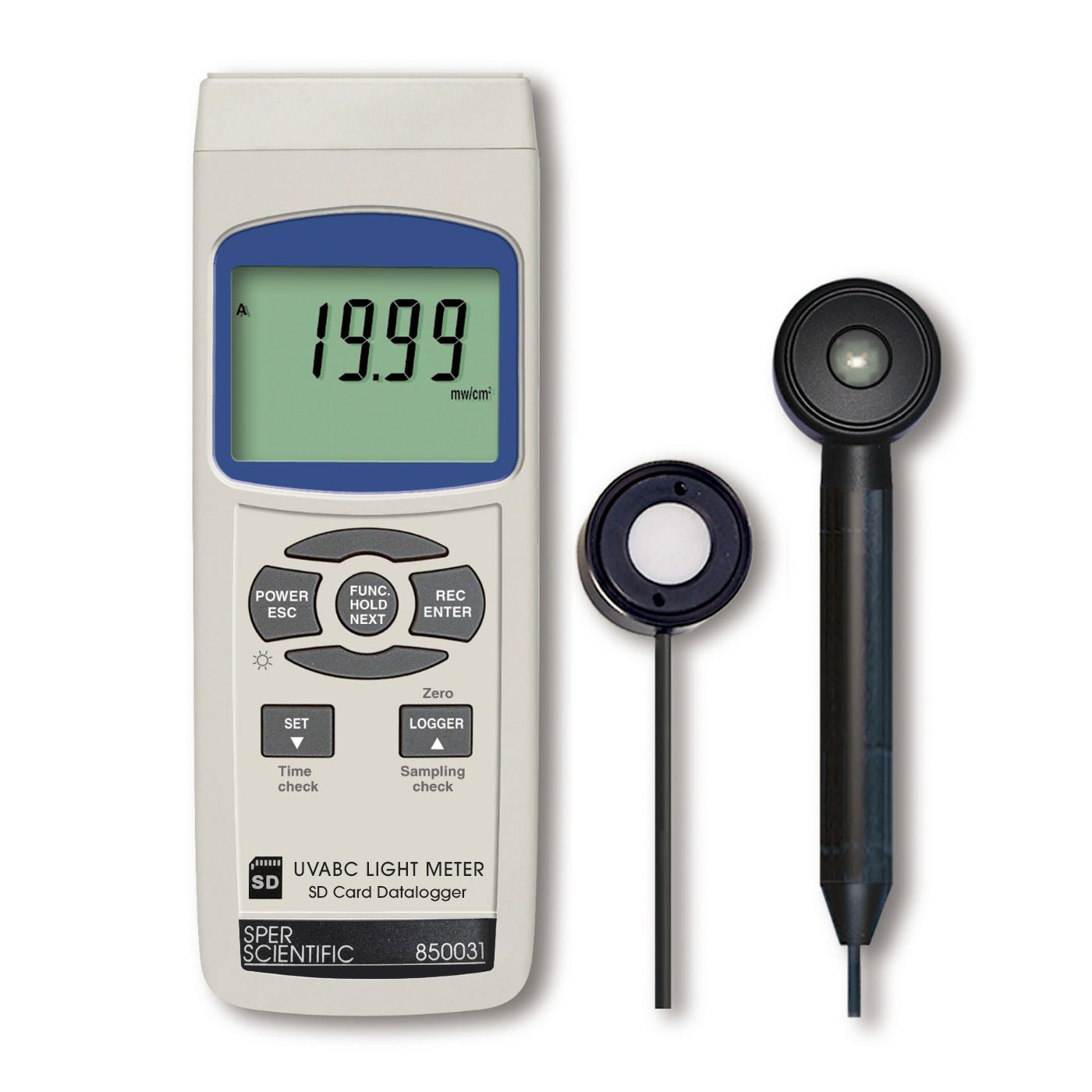

Features a large LCD with green backlight for easy reading, data hold function, and memory recall for maximum and minimum values. The separate UVA and UVC light probes allow for optimal positioning. -
Advanced Connectivity
Includes RS232/USB computer interface for data output, enhancing data management and integration with other systems. -
Additional Thermometer Functionality
Supports Type K and Type J thermocouples for temperature measurement, providing a wide range of applications.
Advanced Features
-
Professional UVA & UVC Measurement
Measures UVA and UVC irradiance with high accuracy and reliability. -
Real-Time Data Logging
Records data with time-stamp information for detailed analysis. -
Zero Adjustment
Easy zero offset using the push button. -
Microprocessor Circuit
Ensures high accuracy and reliability with special functions.
Applications
Environmental Monitoring
Measure UVA/UVB and UVC irradiance in various environmental studies.
Laboratory Analysis
Monitor UVA/UVB and UVC levels in laboratory experiments.
Industrial Use
Assess UVA/UVBand UVC levels in industrial applications, ensuring safety and compliance.
*Certification Option
N.I.S.T. traceable Certificate of Calibration available at additional cost (Select option above).
Specifications
Display:
- Type: LCD with green backlight (ON/OFF)
- Size: 52 mm x 38 mm
Measurement Functions:
UVA/B Light:
- Measurement Ranges:
- 2 mW/cm² (Resolution: 0.001 mW/cm²)
- 20 mW/cm² (Resolution: 0.01 mW/cm²)
- Accuracy: ±(4% FS + 2 dgt)
- Sensor Spectrum: 260 nm to 390 nm
- Sensor Structure: Exclusive UVA photo sensor with cosine correction filter
UVC Light:
- Measurement Ranges:
- 2 mW/cm² (Resolution: 0.001 mW/cm²)
- 20 mW/cm² (Resolution: 0.01 mW/cm²)
- Accuracy: ±(4% FS + 2 dgt)
- Sensor Spectrum: 200 nm to 280 nm
- Sensor Structure: Exclusive UVC photo sensor with cosine correction filter
Type K/J Thermometer:
Type K:
- Range: -50.0 to 1300.0℃ (Resolution: 0.1℃)
- Accuracy: ±(0.4% + 0.5℃)
Type J:
- Range: -50.0 to 1200.0℃ (Resolution: 0.1℃)
- Accuracy: ±(0.4% + 0.5℃)
General Specifications:
- Circuit: Custom one-chip microprocessor LSI circuit
- Power Supply: DC 1.5V batteries (UM3, AA) x 6 PCs, or DC 9V adapter (optional)
-
Power Consumption: Normal operation (without SD card save data and LCD backlight OFF): Approx. DC 6.5 mA
- When SD card saves data but LCD backlight OFF: Approx. DC 30 mA
- Additional power consumption with LCD backlight ON: Approx. DC 16 mA
Operating Environment:
- Temperature: 0 to 50℃
- Humidity: Less than 85% RH
Dimensions:
- Meter: 177 x 68 x 45 mm
- UVA Probe: 45 mm DIA x 32 mm
- UVC Probe: 38 mm DIA x 25 mm
Weight:
- Meter: 351 g
- UVA Probe: 100 g
- UVC Probe: 103 g
Data Logger:
- Automatic: 1 second to 3600 seconds
- Manual: Set the sampling time to 0 seconds for manual datalogger function with position 1 to 99

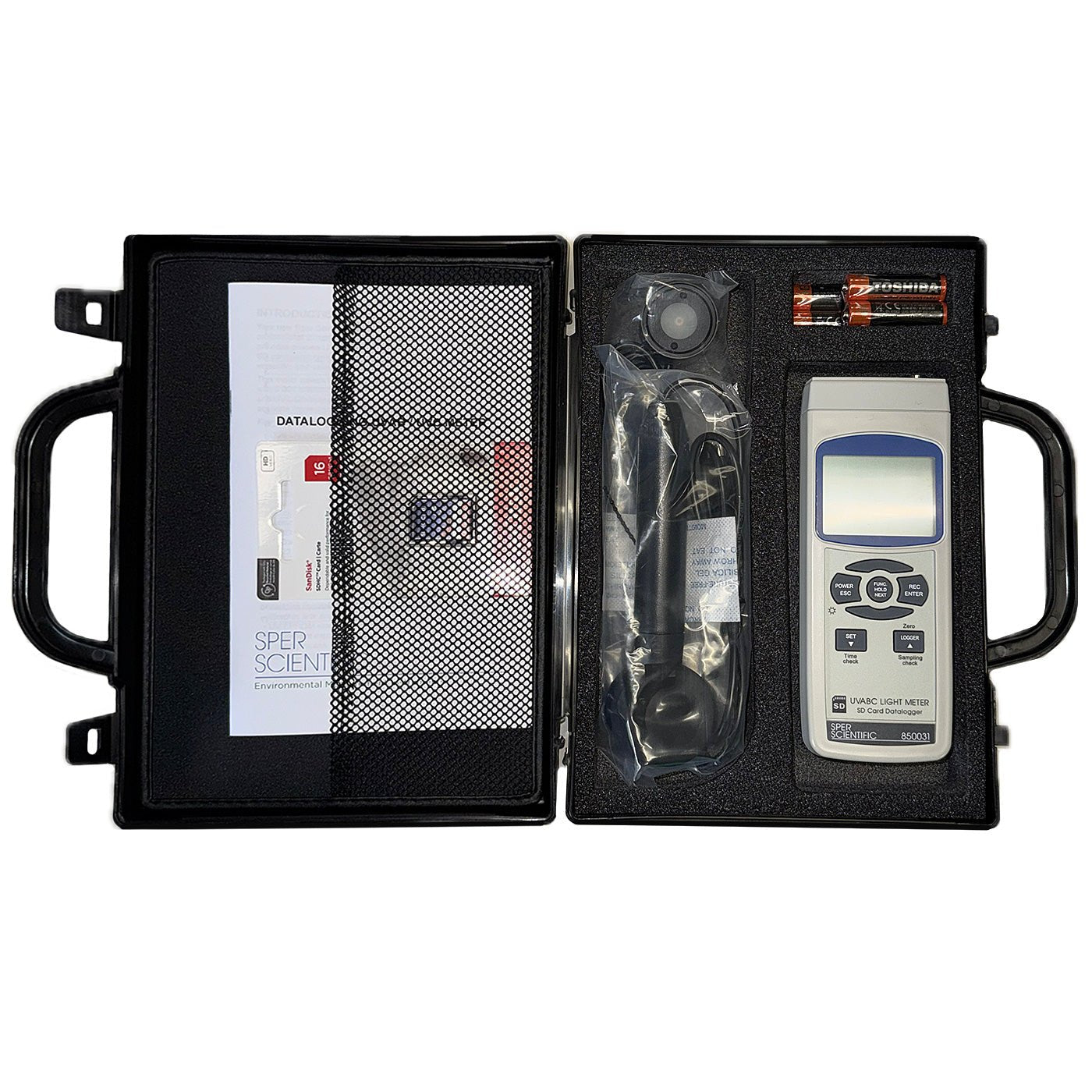

Accessories Included:
- Instruction Manual: 1 PC
- UVA Light Sensor: 1 PC
- UVC Light Sensor: 1 PC
- Hard Carrying Case (CA-06): 1 PC
Optional Accessories:
- SD Card (16 GB Max)
- Type K Thermocouple Probes (TP-01, TP-02A, TP-03, TP-04, TP-05)
- AC to DC 9V Adapter
- USB Cable (USB-01)
- RS232 Cable (UPCB-02)
- Data Acquisition Software (SW-U801-WIN)
- Excel Data Acquisition Software (SW-E802)
